Product Description

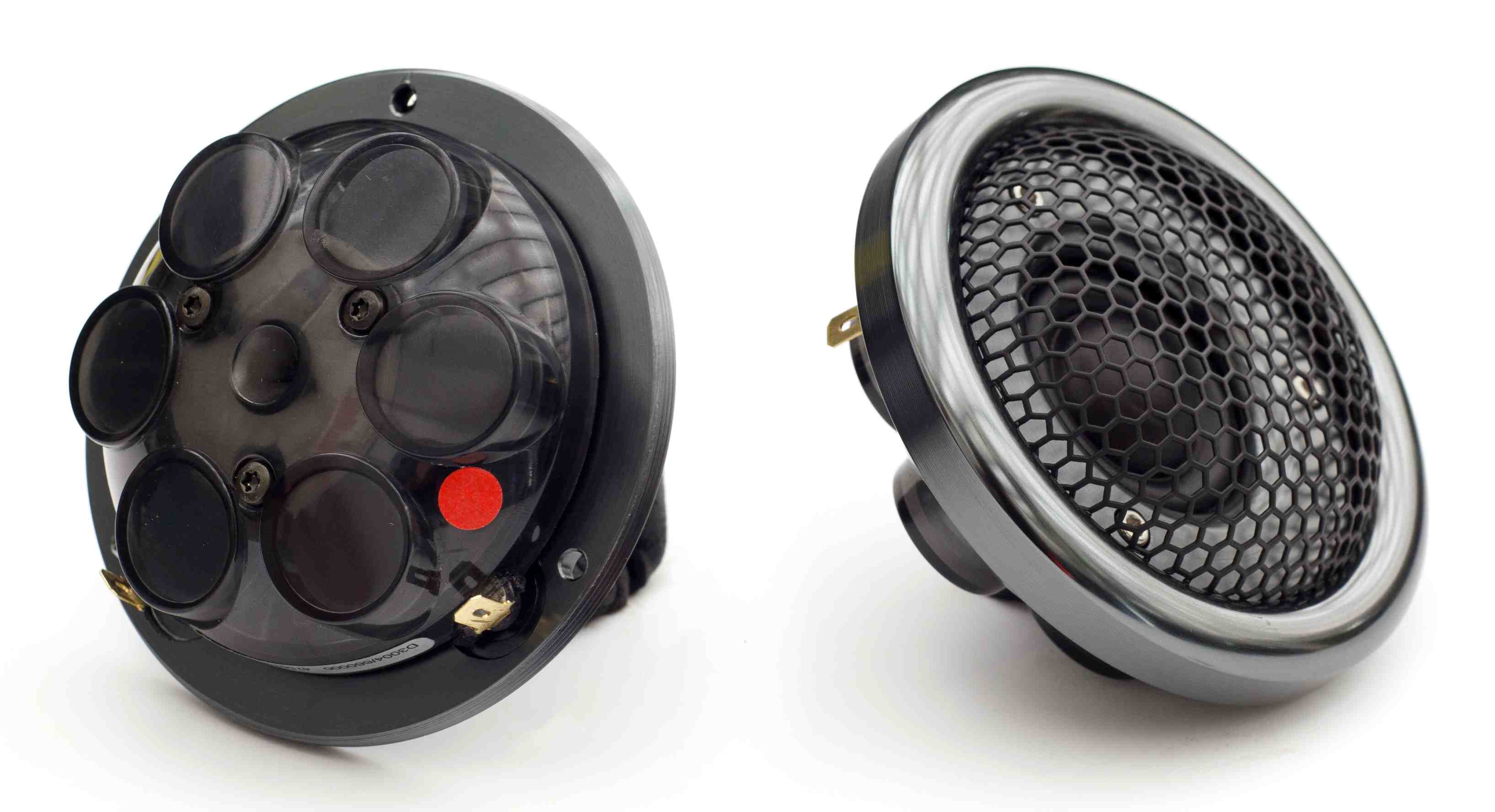

HARMOTECH H7.3 ( TWEETER )
The HARMOTECH H7.3 Tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and textile dome diaphragm provides a flat frequency response to above 30KHz with outstanding off-axis dispersion. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.
1" Textile Dome Diaphragm
Patented Symmetrical Drive (SD-2) motor
Die Cast Rubber Painted Alu Face Plate
Large Roll Surround f. Wide Dispersion
AirCirc Motor Design w. 6 Neo magnets

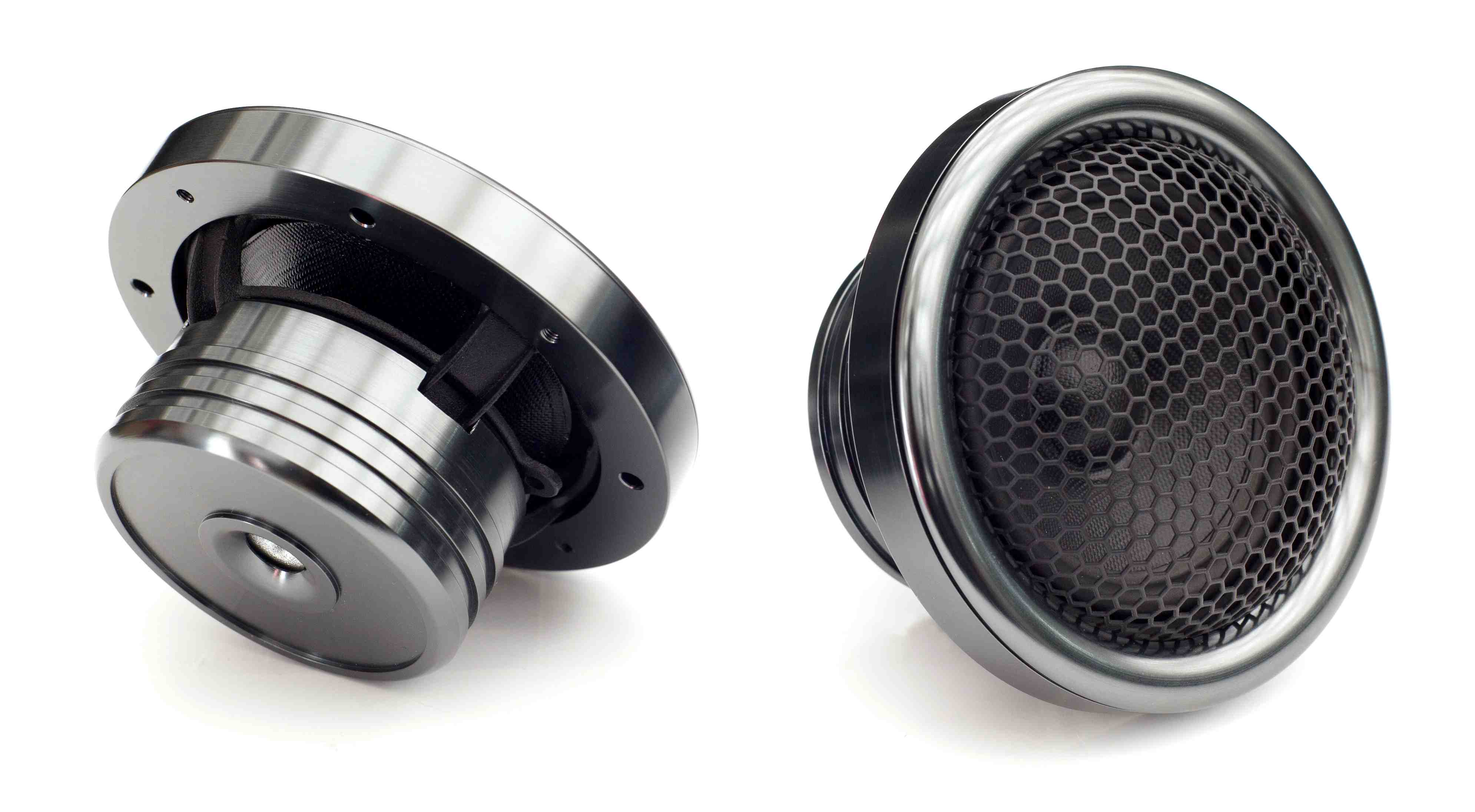

HARMOTECH H7.3 ( MIDRANGE )
The HARMOTECH H7.3 ( MIDRANGE ) offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made HARMOTECH solution with very good performance
Very wide Frequency Range
Coated NRSC Fibre Glass Cone (patent)
Compact Size, Neo magnet, Alu. Chassis
High Sensitivity 90dB / 2,83V
SBR Rubber Surround
Copper Cap on Pole Piece

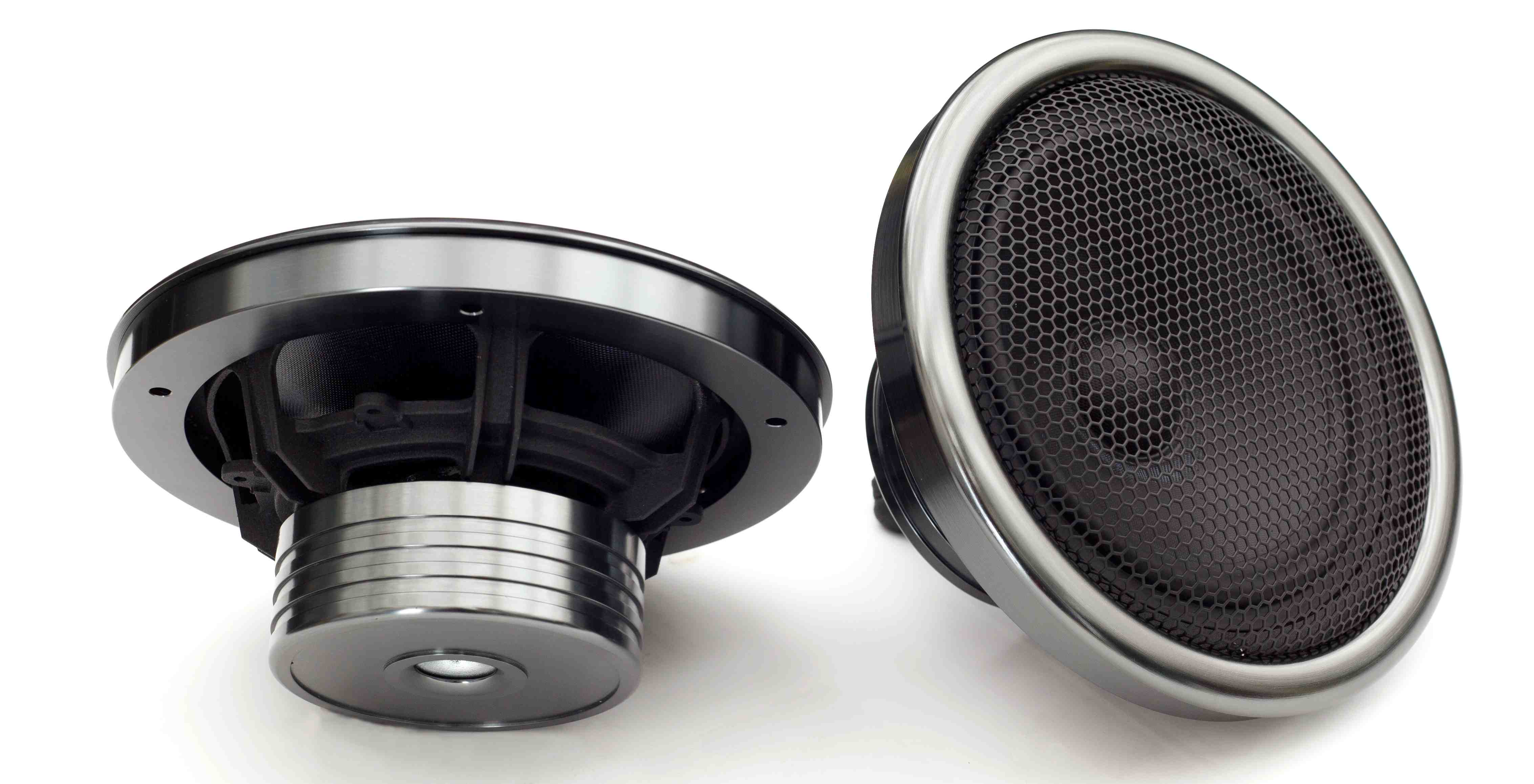

HARMOTECH H7.3 ( MIDBASS )
The HARMOTECH H7.3 ( MIDBASS ) offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made HARMOTECH solution with very good performance
High Output 91dB @ 2,83V
Magnet System w. Alu Ring
Die cast Alu Chassis vented below spider
Coated NRSC Fibre Glass Cone
Low Damping SBR Rubber Surround

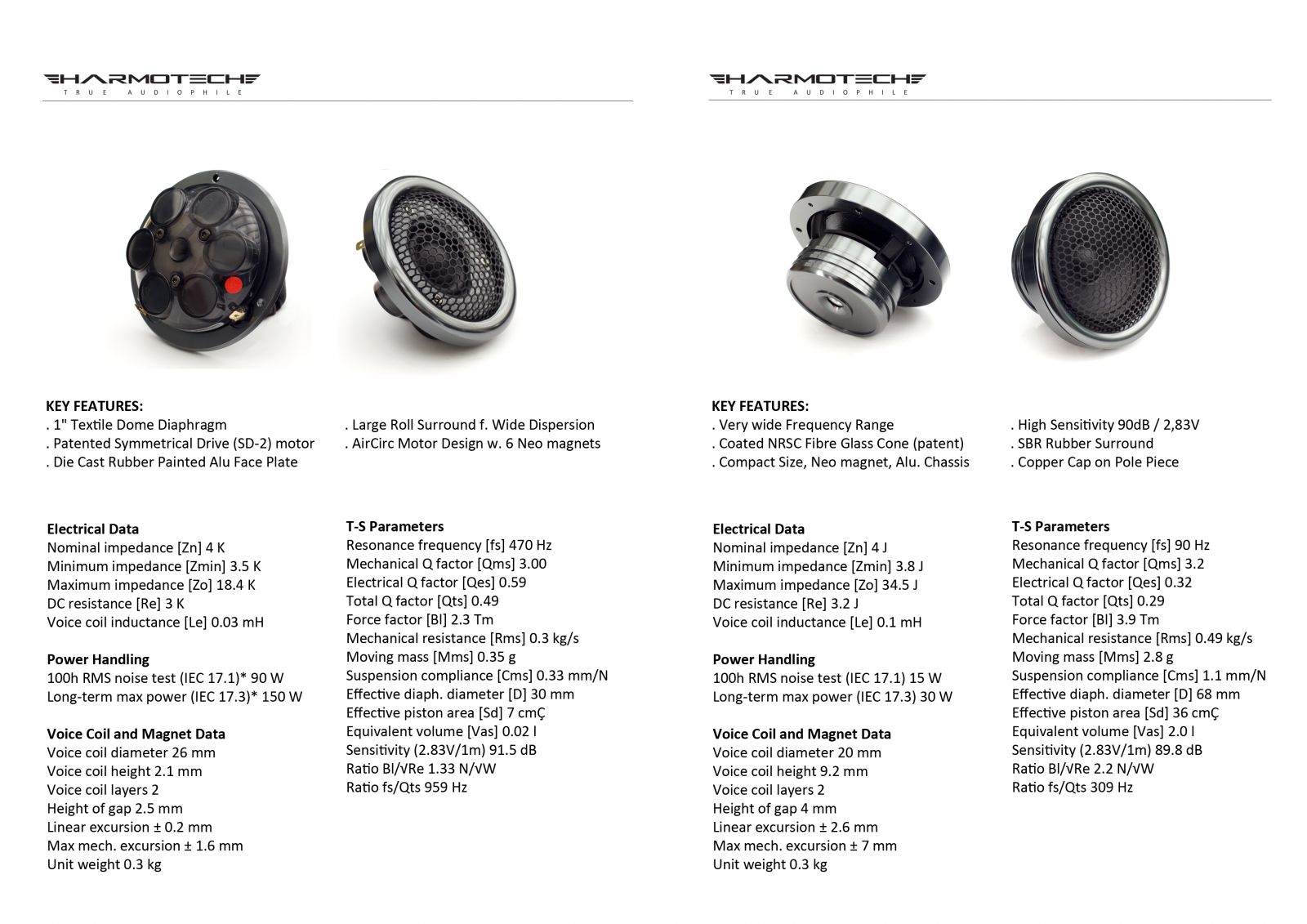

HARMOTECH H7.3 ( TWEETER )
Component | Tweeter | ||||||||||||||||||||||||||
Size | 38 mm | ||||||||||||||||||||||||||
Nominal impedance [Zn] | 4 Ω | ||||||||||||||||||||||||||
Minimum impedance [Zmin] | 3.5 Ω | ||||||||||||||||||||||||||
Maximum impedance [Zo] | 18.4 Ω | ||||||||||||||||||||||||||
DC resistance [Re] | 3 Ω | ||||||||||||||||||||||||||
Voice coil inductance [Le] | 0.03 mH | ||||||||||||||||||||||||||
100h RMS noise test (IEC 17.1)* | 90 W | ||||||||||||||||||||||||||
Long-term max power (IEC 17.3)* | 150W | ||||||||||||||||||||||||||
Voice coil diameter | 26 mm | ||||||||||||||||||||||||||
Voice coil height | 2.1 mm | ||||||||||||||||||||||||||
Voice coil layers | 2 | ||||||||||||||||||||||||||
T/S parameters single V/C |
|
*Filter: 2. order HP Butterworth, 2.5 kHz
HARMOTECH H7.3 ( MIDRANGE )
Component | Midrange | ||||||||||||||||||||||||||
Size | 97.5 mm | ||||||||||||||||||||||||||
Nominal impedance [Zn] | 4 Ω | ||||||||||||||||||||||||||
Minimum impedance [Zmin] | 3.8 Ω | ||||||||||||||||||||||||||
Maximum impedance [Zo] | 34.5 Ω | ||||||||||||||||||||||||||
DC resistance [Re] | 3.2 Ω | ||||||||||||||||||||||||||
Voice coil inductance [Le] | 0.1 mH | ||||||||||||||||||||||||||
100h RMS noise test (IEC 17.1) | 15 W | ||||||||||||||||||||||||||
Long-term max power (IEC 17.3) | 30W | ||||||||||||||||||||||||||
Voice coil diameter | 20 mm | ||||||||||||||||||||||||||
Voice coil height | 9.2 mm | ||||||||||||||||||||||||||
Voice coil layers | 2 | ||||||||||||||||||||||||||
T/S parameters single V/C |
|

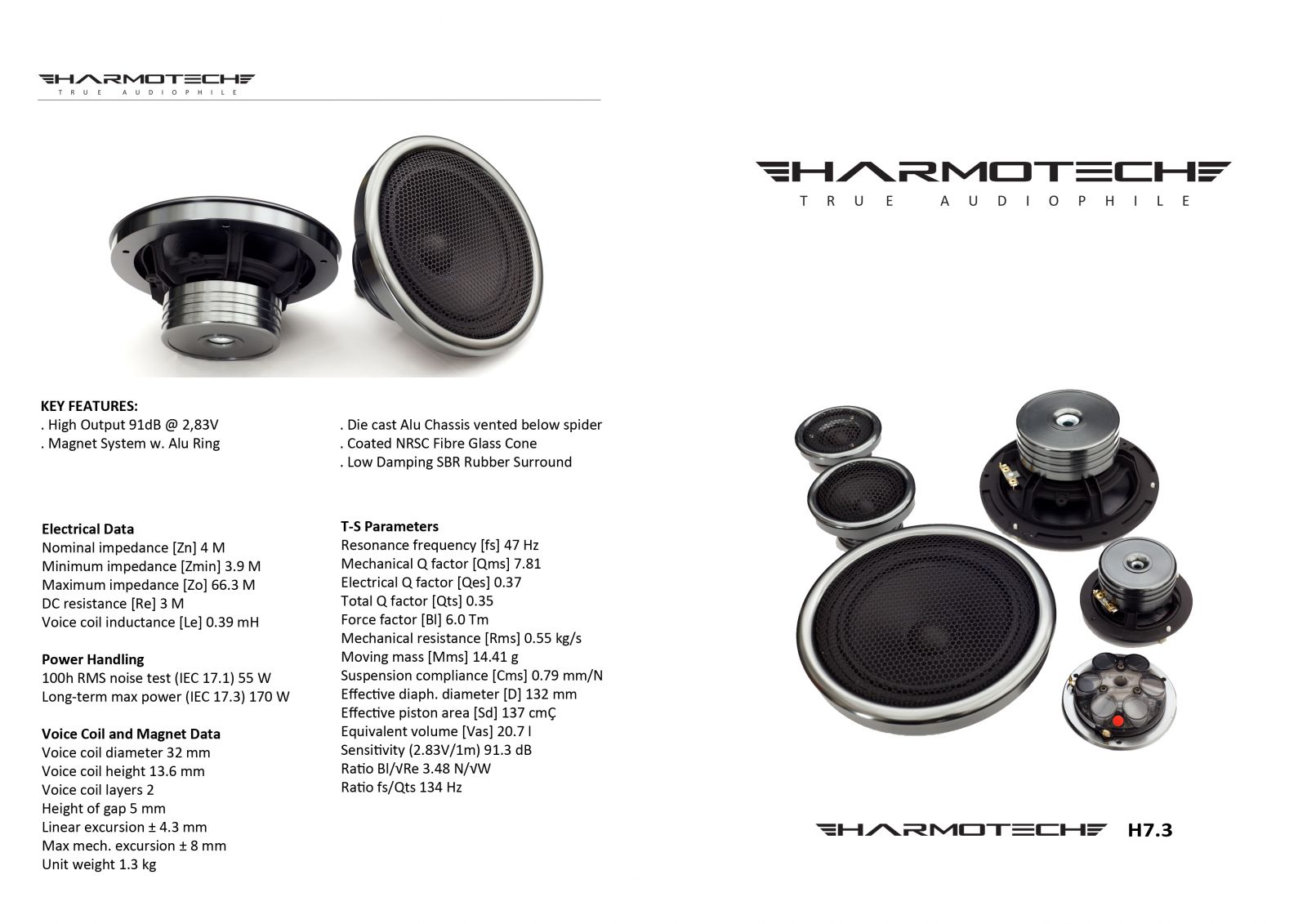

HARMOTECH H7.3 ( MIDBASS )
Component | Midbass | ||||||||||||||||||||||||||
Size | 179.60 mm | ||||||||||||||||||||||||||
Nominal impedance [Zn] | 4 Ω | ||||||||||||||||||||||||||
Minimum impedance [Zmin] | 3.9 Ω | ||||||||||||||||||||||||||
Maximum impedance [Zo] | 66.3 Ω | ||||||||||||||||||||||||||
DC resistance [Re] | 3 Ω | ||||||||||||||||||||||||||
Voice coil inductance [Le] | 0.39 mH | ||||||||||||||||||||||||||
100h RMS noise test (IEC 17.1) | 55 W | ||||||||||||||||||||||||||
Long-term max power (IEC 17.3) | 170W | ||||||||||||||||||||||||||
Voice coil diameter | 32 mm | ||||||||||||||||||||||||||
Voice coil height | 13.6 mm | ||||||||||||||||||||||||||
Voice coil layers | 2 | ||||||||||||||||||||||||||
T/S parameters single V/C |
|
