> PRODUCT > ROCKFORD FOSGATE > SPEAKERS > POWER T5652-S

POWER T5652-S

Ask question about this product

Price : 0.- บาท


Product Description

ROCKFORD FOSGATE T5652-S is the best 6.5” 2-way component system



     Audiophiles rejoice! The Power T5 Component Speakers are a new epitome of sound quality and performance for car audio speakers. We asked our chief audio engineer to design the best loudspeakers Rockford Fosgate has ever offered, and the T5 is the result of years researching and testing components to satisfy that commitment. There are so many cool technologies implemented in the Power T5 series, you'll find yourself drooling over the features and specifications below.

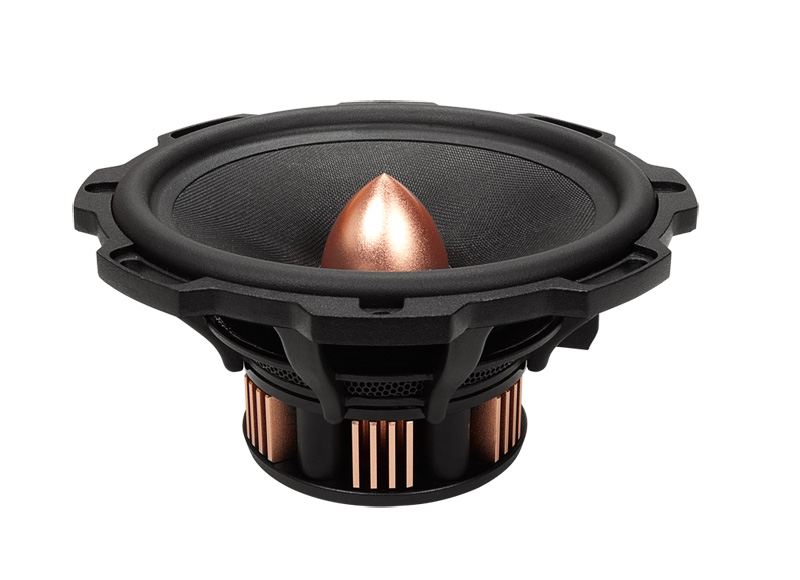

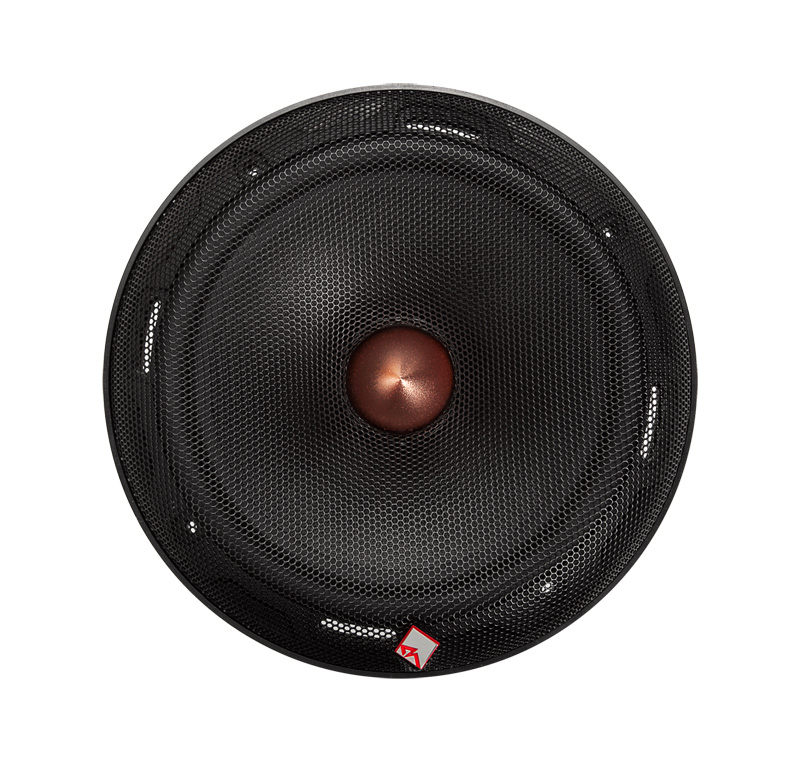

     The T5652-S is the best 6.5” 2-way component system from Rockford Fosgate. Rated at 150 Watts RMS, the system includes two woofers with grilles, pair of tweeters, a multi-function audiophile crossover and mounting hardware.

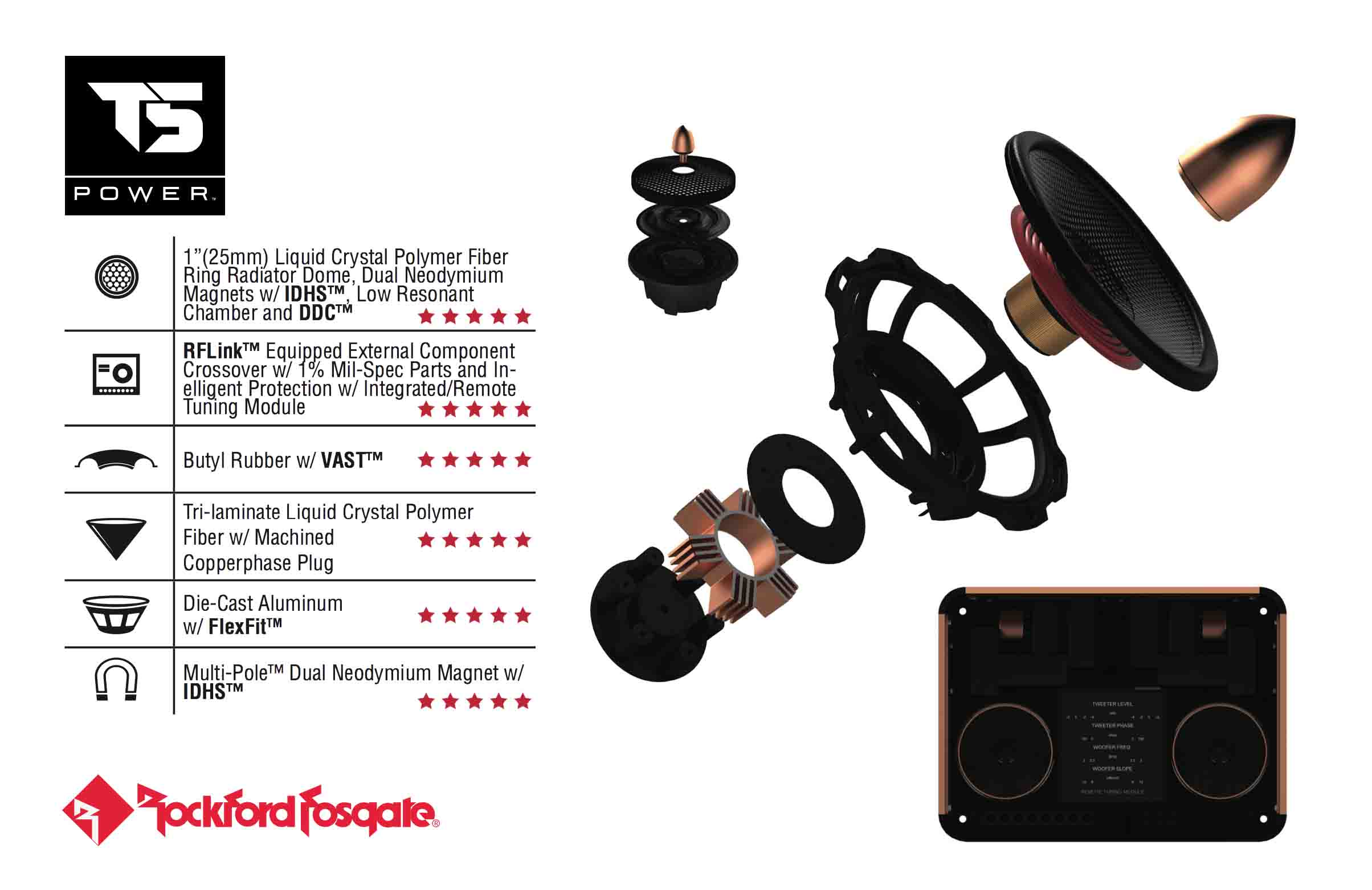

  • 1" (25mm) ring radiator LCP dome tweeter with copper phase plug
  • LCP (Liquid Crystal Polymer) fiber trilaminate cone
  • True Nomex spider
  • Die cast aluminum frame
  • Multi-pole™ neodymium motor structure
  • Solid copper phase plug for extended frequency range and greater power handling













IDHS™ T5 Inductive Damping Heat Sink

Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-magnetic force). Also radiates heat to reduce voice coil temperature.







VAST Surround - speakers

U.S. Patent Patent Pending

The Vertical Attach Surround Technique significantly increases a speaker's effective radiating cone area without complicated installation issues. The result provides up to 25% more effective radiating cone area for the same model speaker.



VAST™ significantly increases a speakers effective radiating cone area without complicated installation issues. This design alters the typical design and manufacturing technique by eliminating the large flat glue surface area (the landing) which allows the surround to be shifted for increased cone area. In turn, both nominal efficiency and maximum output capabilities are dramatically improved.

A hypothetical comparison of a 2004 Power T1 subwoofer vs. a VAST™ example:

The new patent-pending VAST™ technique is a result of combining a unique design concept with precise manufacturing to provide up to 25% more effective radiating cone area.

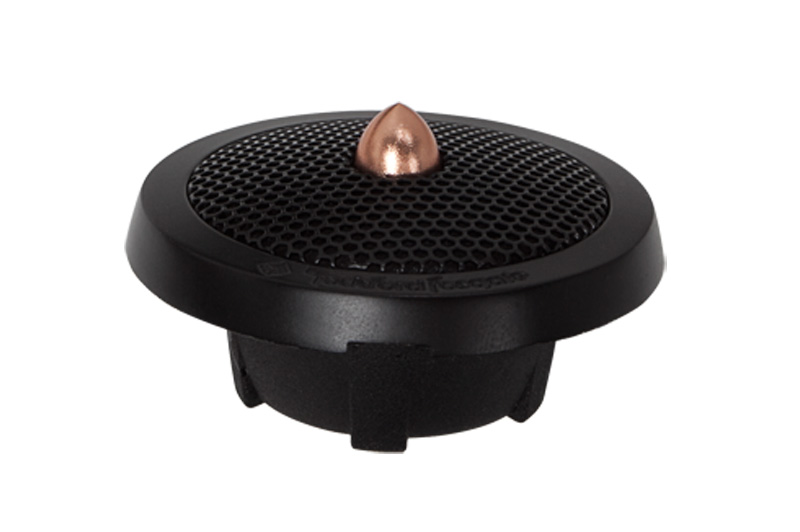

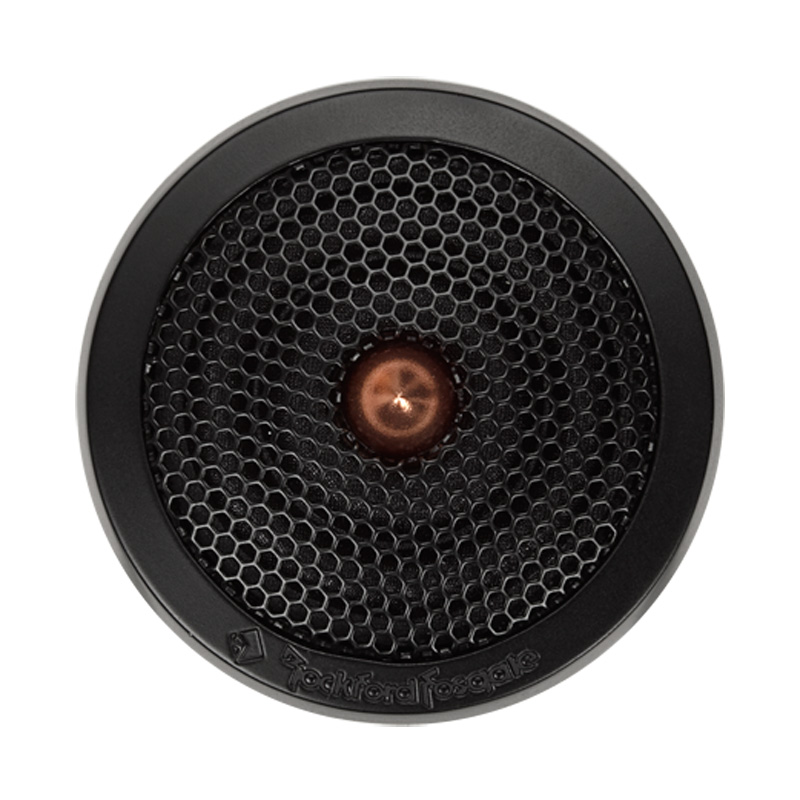

DDC™ Tweeter Mounting

Our DDC™ (Discreet Dual Clamp) Tweeter Mounting provides concentric clamping pressure around the perimeter of the mounting hole. This results in maximimum ease of installation.



Every aspect of our new DDC™ Tweeter design has been completely re-engineered to allow for maximum ease of installation and fitment. This optimized patent pending design provides concentric clamping pressure around the perimeter of the mounting hole.

The "mounting cups" on the new design are in fact not "cups" at all, but rather unobtrusive "clamps" that quickly and easily mount in a standard 1-5/4" (45mm) hole saw opening with a single concentric center screw securing with balanced pressure to both faces of the mounting surface. From there, the tweeter simply snaps into place and is secured by a snap on trim ring. Removal is easy if needed. The protective grille on the tweeter is non-removable and an integral part of the design.

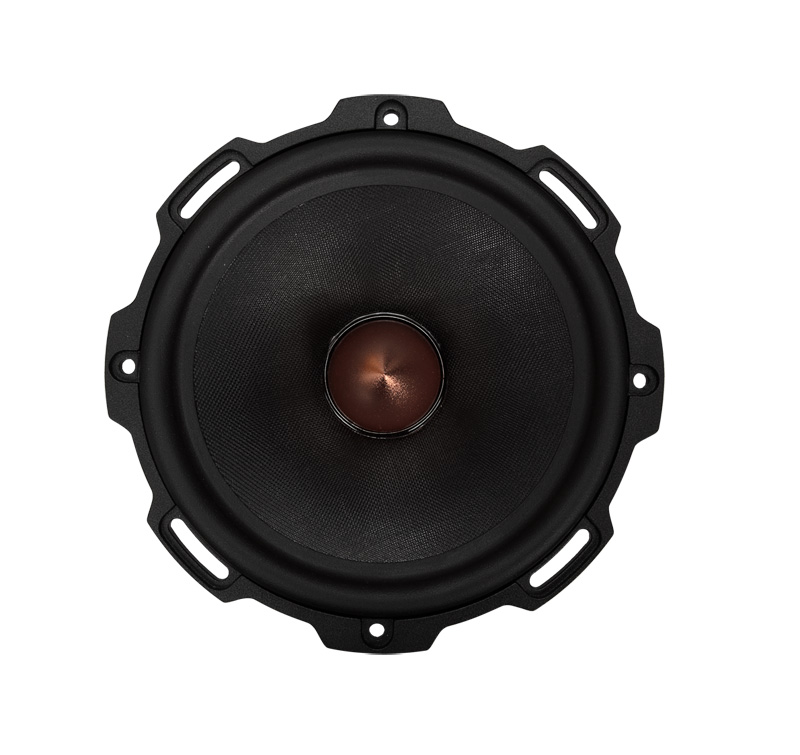

Flex Fit Basket - Speaker

The slot mounted frame pattern allows for variable adjustments to the mounting position.



The Flex Fit frame utilizes slots (where feasible) instead of single screw sized holes. This allows slight adjustment of the speaker when mounted.







RFLINK

Communication protocol allowing multiple Rockford Fosgate products to link-up with each other to provide intelligent control.





CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous damand, not instantaneous power handling, that over time, can damage voice coils.













CEA-2031 Compliant: CEA-2031 Guidelines
Configuration: 2-Way Component System
Midrange Diameter (in): 6.5"
Midrange Depth (in): 2.79"
(71.0 mm)
Tweeter Diameter (in): 1"
(25mm)
Tweeter Depth (in): 0.66"
(17 mm)
Frequency Response: 45Hz to 40kHz
Nominal Impedance: 4-Ohm
Power Handling (RMS): 150 Watts RMS
300 Watts MAX
Crossover: Tweeter Level: -4dB/-2dB/0dB/+2dB
Tweeter Phase: 0°/180°
Woofer Frequency: 2.5kHz or 3kHz
Woofer Slope: 6dB or 12dB/octave
Sensitivity
(dB @ 1 watt/1 meter):
88.5
Grilles Included: Yes
Mounting Hardware: Yes
Shipping Weight: 17.4 Lbs.
(7.89 Kg)
