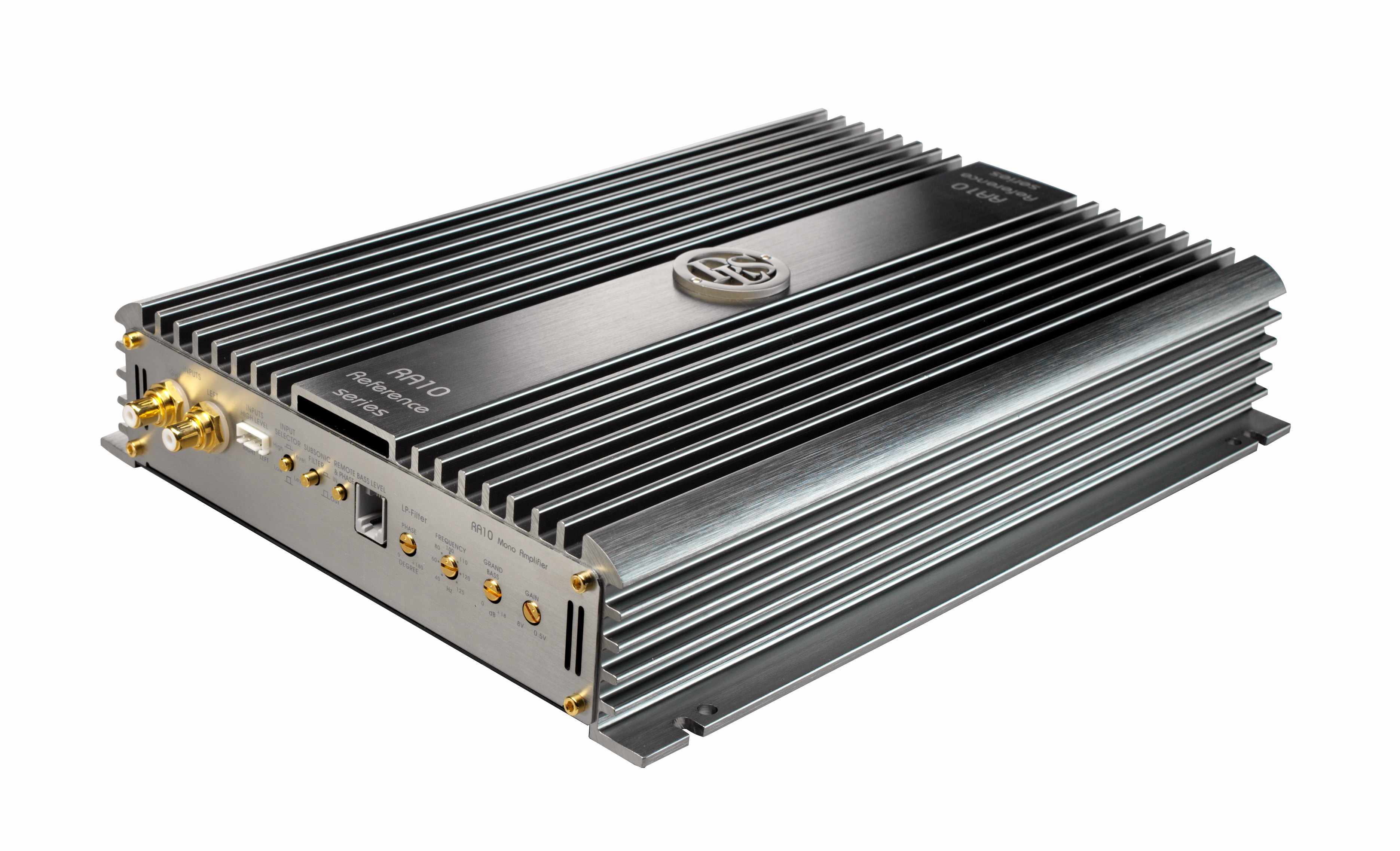

DLS Reference RA10 - 780 Watt 1CH Amplifier

DLS REFERENCE series RA10 is a mono amplifier rated at 300 Watts. Provides a nominal output of 500 Watts in 2 ohm load and 780 Watts in 1 ohm load.

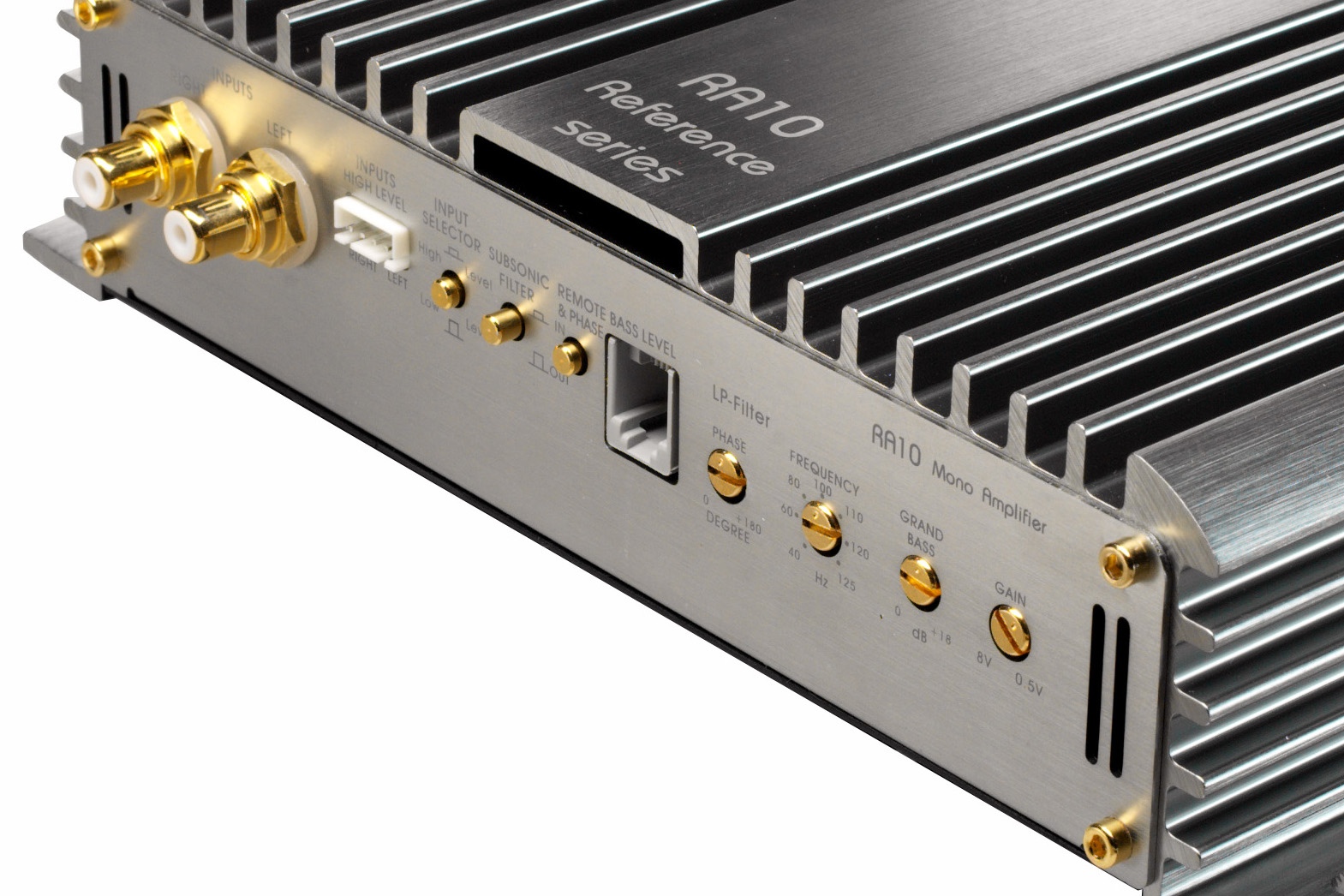

- Built-in variable 40-125 Hz low-pass filter and 25 Hz subsonic filter.
- Grand bass 0-18 dB.
- Phase shift control.
- High level input with automatic start.
- Remote bass level and phase control unit is included.
- Built-in cooling fan.
- RMS output at 13,8 volts , < 0,1% distortion.

Number of channels	1
Amplifier class	AB
Mono bridge mode 4 ohm	N/A
Output power in 1 ohm	780 W RMS
Output power in 2 ohm	500 W RMS
Output power in 4 ohm	300 W RMS
Damping factor	> 200
S/N ratio, A-weighted	> 100 dB
Frequency range	10 Hz - 125 Hz
Input sensitivity	0,5 - 8 V
Low level output	No
Input impedance	> 10 kohm
Input impedance, high level	330 ohm
Phase control for subwoofers	0-180 degrees variable
High pass filter	Subsonic 25 Hz / 18 dB slope
Low pass filter	40-125 Hz / 12 db slope
Grand bass filter	0-18 dB @ 40 Hz
High level input with auto start	Yes
Remote phase shift control	Yes
Remote bass level control	Yes
Integrated fan	Yes
Power consumption (idle)	0,6A
Power consumption (max)	120 A
Rec. power cable	Minimum 2AWG / 33 mm2

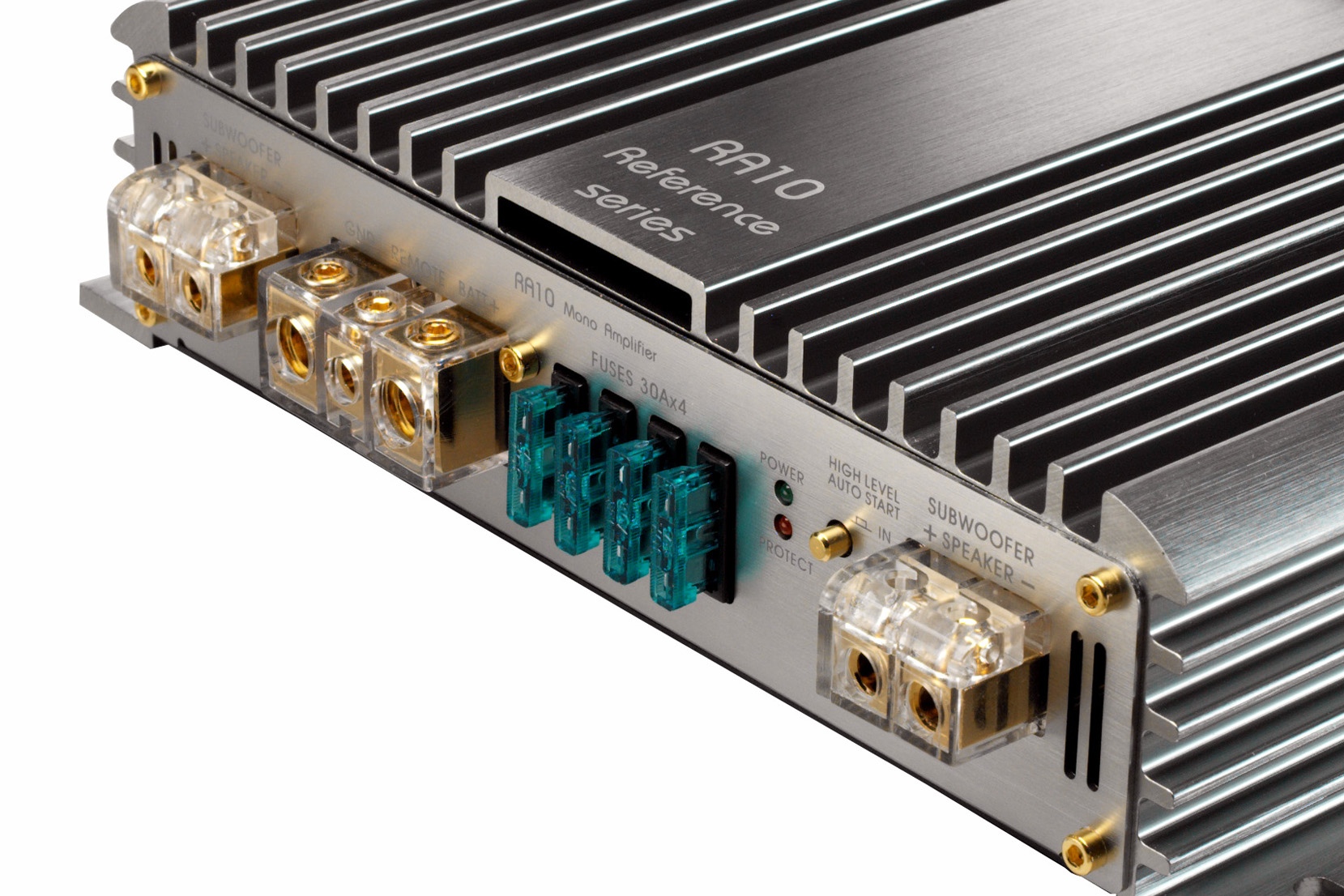

Fuses	4 x 30 A
Dimension (W x D x H)	359 x 245 x 59 mm (14,1 x 9,65 x 2,33 inch)
Weight	4,3 kg ( 9,5 lb)
