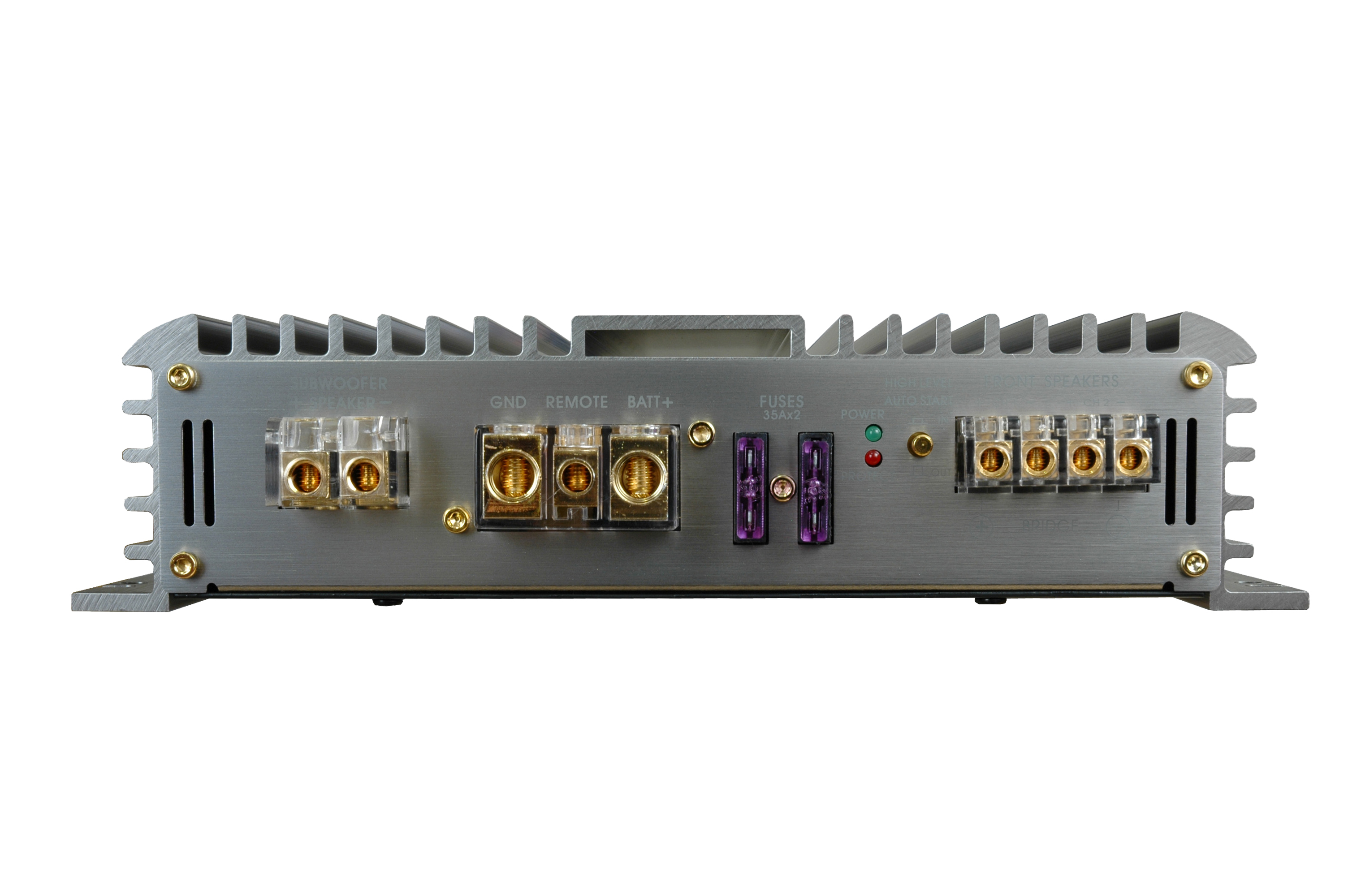

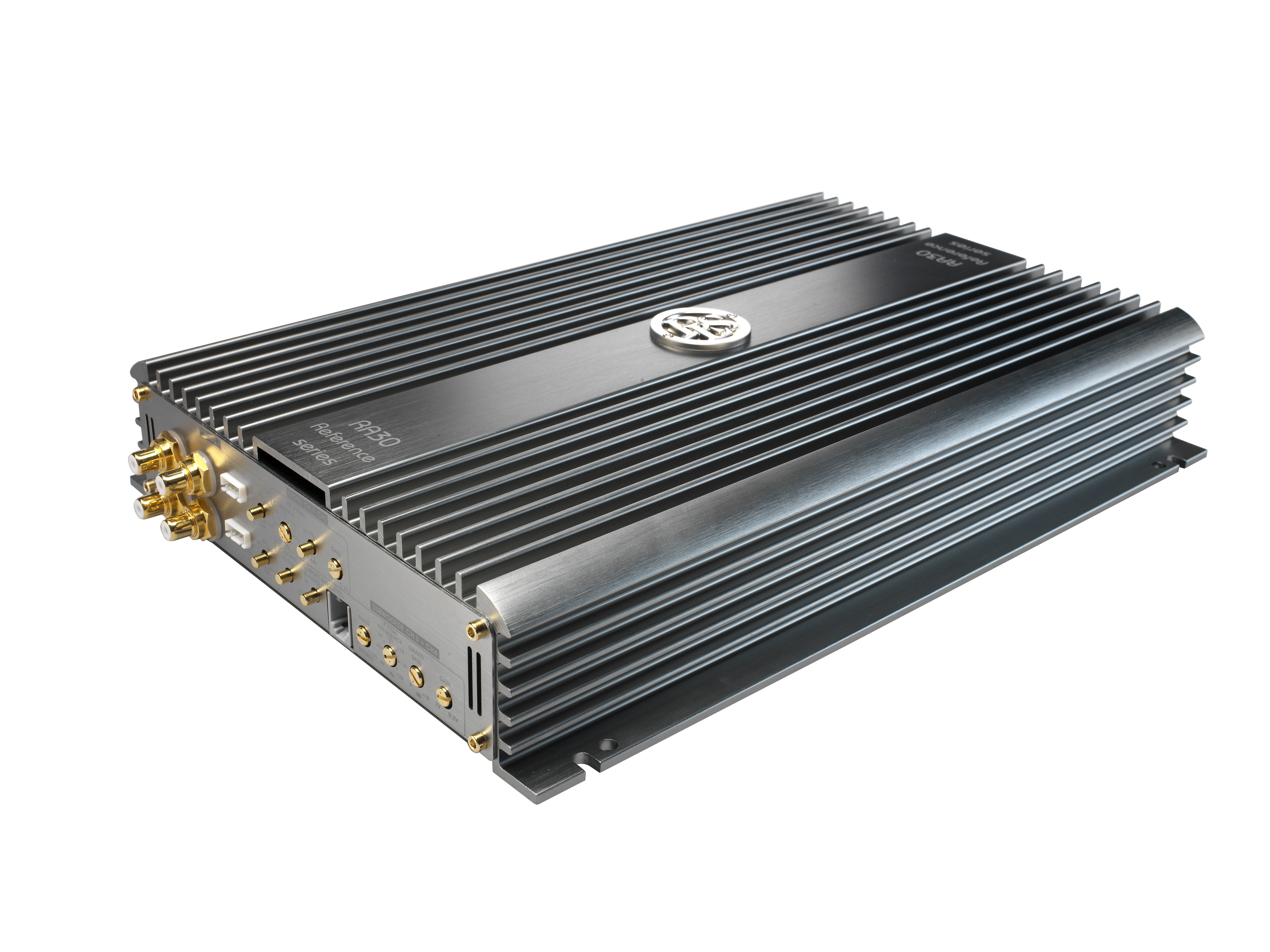

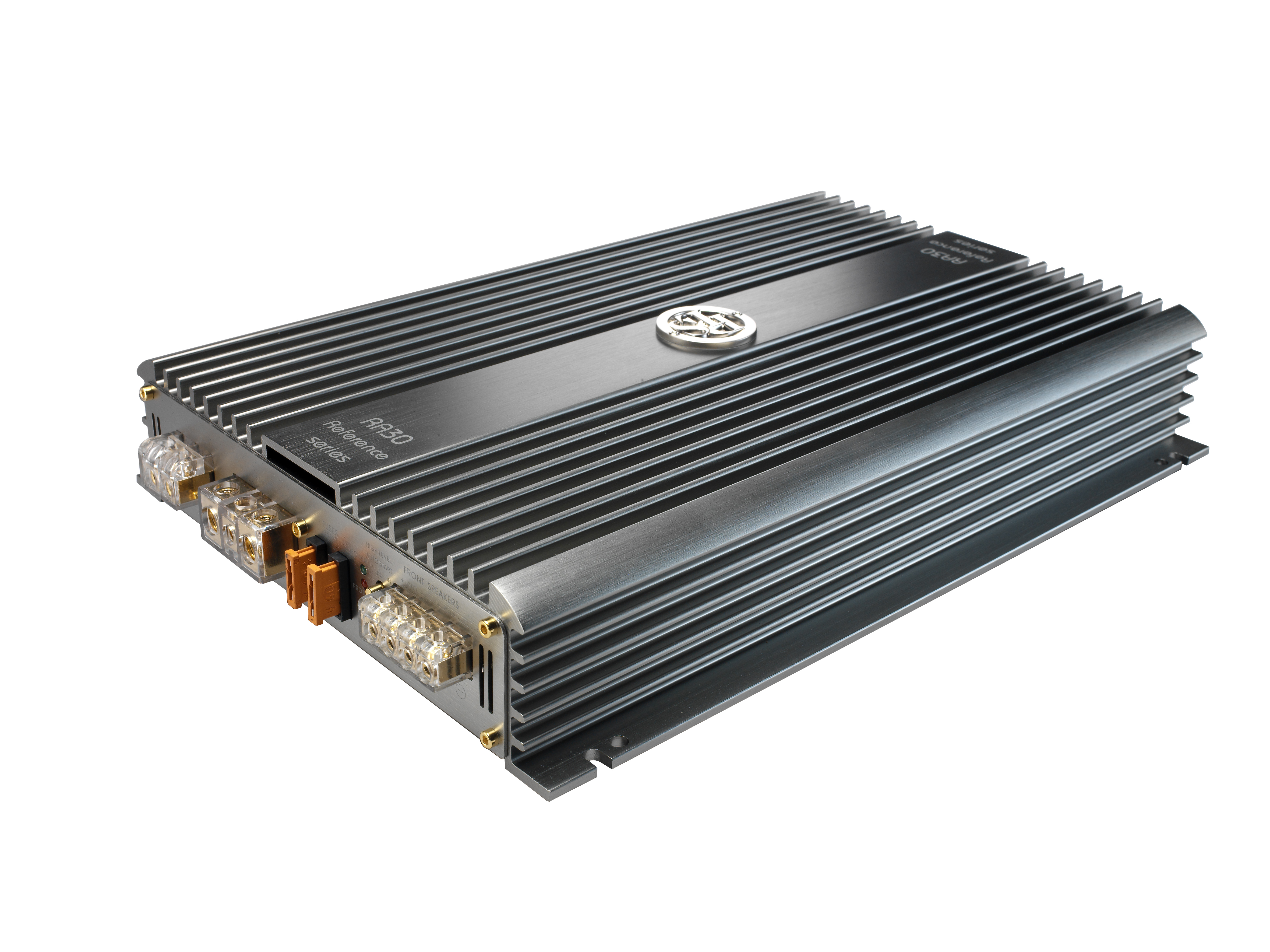

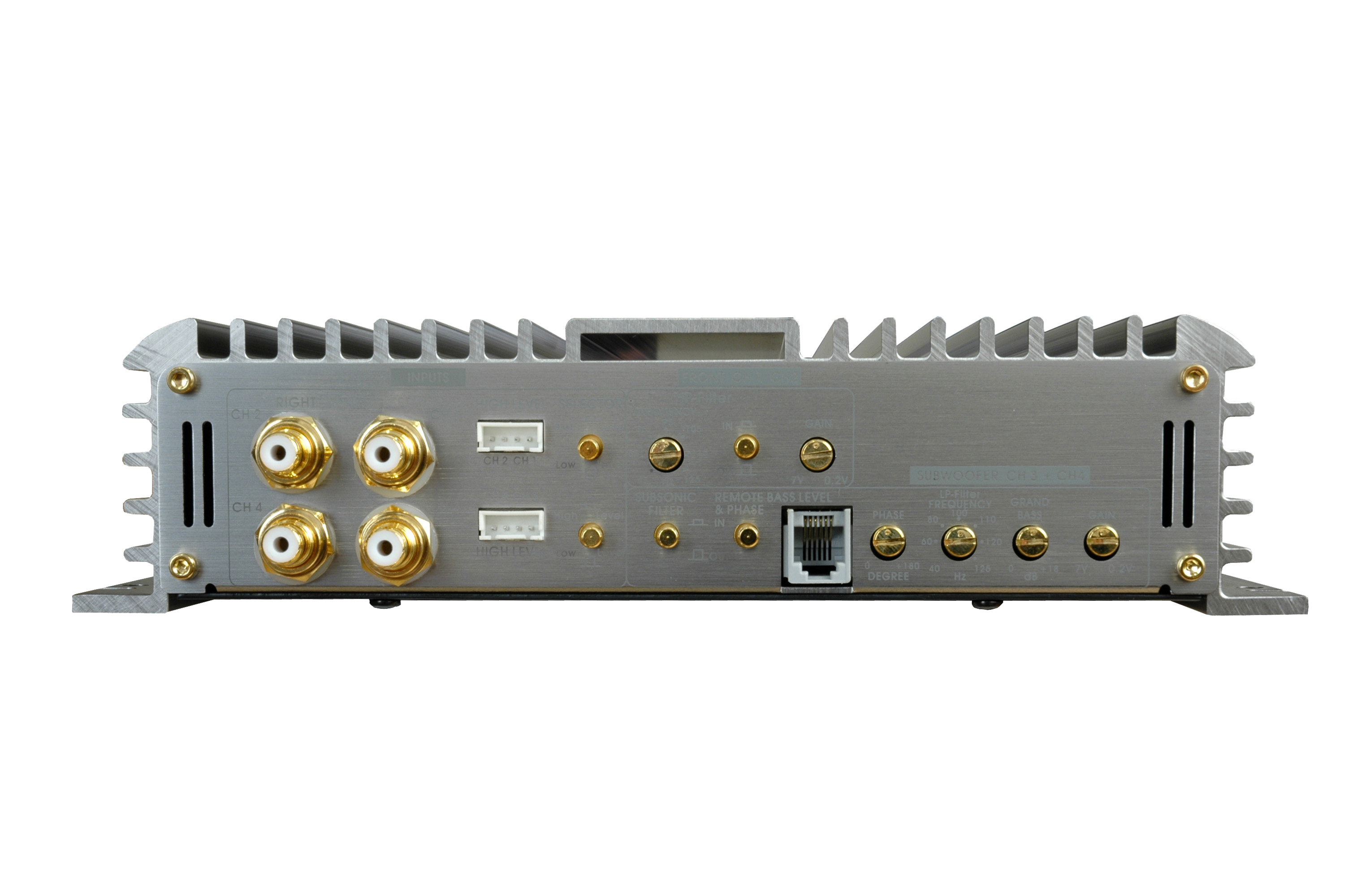

DLS Reference RA30 - 565 Watts 3CH Amplifier

DLS REFERENCE series RA30 is a 3-channel amplifier rated at 2 x 70 + 1 x 265 Watts.

- Built-in variable 40-125 Hz switchable low pass filter for subwoofers.
- Built-in/switchable variable 45-125 Hz high pass filter that can be used as a subsonic filter or high-pass filter for front systems.
- Grand bass 0-18 dB.
- Phase shift control.

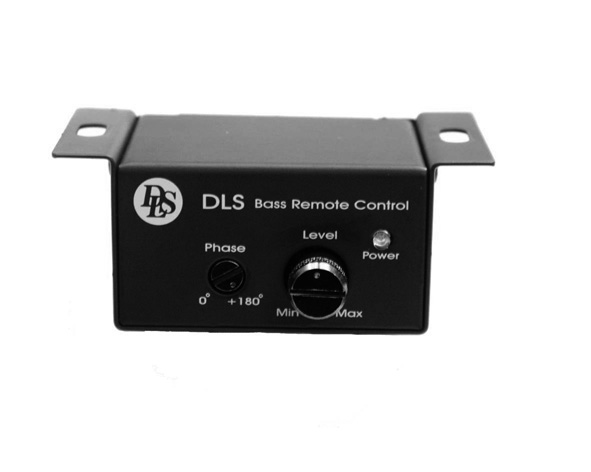

- Remote level and phase control included
- High level input with automatic start.
- RMS output per channel at 13,8 volts, 20 Hz - 20 kHz , < 0,1% distortion.

Number of channels	3
Amplifier class	AB
Output power in 2 ohm	2 x 100 W RMS
Output power in 4 ohm	2 x 70 W RMS
Mono sub channel 2 ohm	365 W RMS
Mono sub channel 4 ohm	265 W RMS
Damping factor	> 200
S/N ratio, A-weighted	> 100 dB
Frequency range	10 Hz - 50 kHz
Input sensitivity	0,2 - 7 V
Input impedance	< 10 kohm
Input impedance, high level	330 ohm
High level input with auto start	Yes
Remote bass level control	Yes
Low level output	No
Remote phase shift control	Yes
Filters channel A & B	HP: 45 - 125 Hz
Phase control for subwoofers	0-180 degrees variable
Filter sub channel	LP: 40 - 125 Hz
Grand bass filter	0-18 dB @40 Hz
Power consumption (idle)	0,9 A
Power consumption (max)	70 A
Rec. power cable	Minimum 4AWG / 21 mm2
Fuses	2 x 35 A
Dimension (W x D x H)	385 x 245 x 59 mm (15,15 x 9,65 x 2,33 inch)
Weight	4,4 kg ( 9,7 lb)
