DLS Ultimate A7 - 1000 Watts 5 CH. Amplifier

DLS ULTIMATE series A7 Five-channel amplifier rated at 4 x 60 Watts

on the stereo channels plus 1 x 300 Watts from the mono sub channel.

- Build to provide a complete in car entertainment system system with all necessary crossovers, all in one amplifier. For detailed information about the crossover possibilities please read the technical specifications.

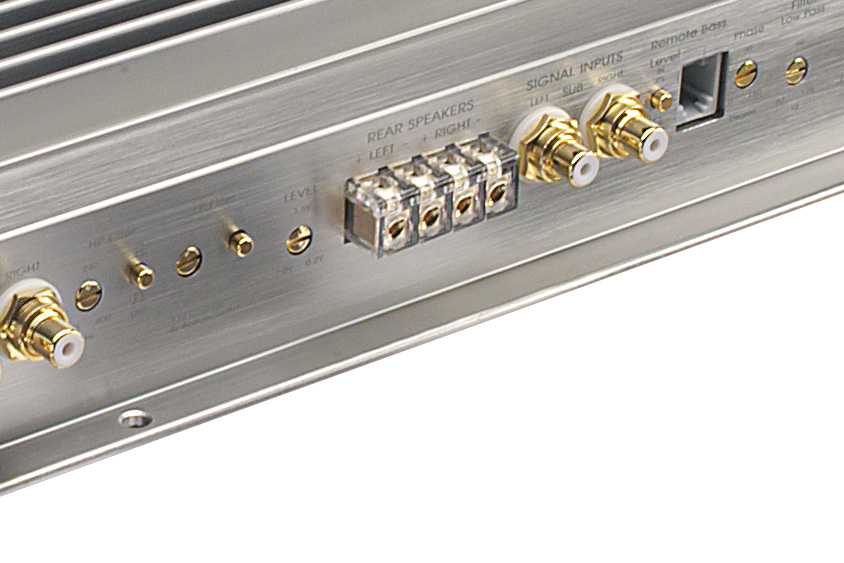

- Internal switches connects all amplifier inputs if you prefer to use only one RCA cable.
- Built-in fan control.

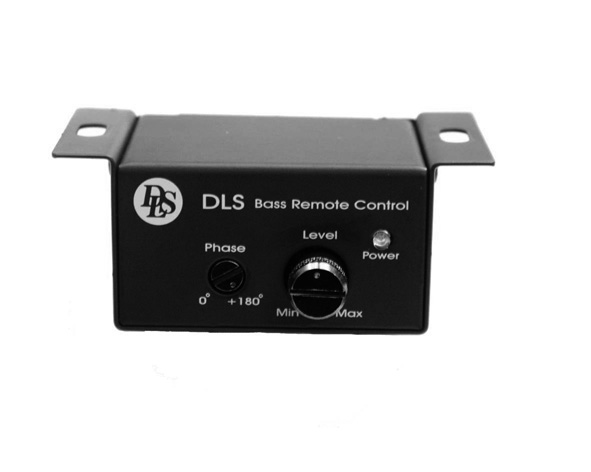

- Remote sub level control with adjustable phase shift is included.
- RMS output per channel at 13,8 volts, 20 Hz - 20 kHz , < 0,1% distortion.

The Ultimate series amplifiers are known for the good sound quality with a detailed, high resolution sound. The amplifiers are often used in SQ competitions in both IASCA and EMMA competitions. The amplifiers are used in cars winning both European and World championsships

Number of channels	5
Amplifier class	AB
Mono bridge mode 4 ohm	2 x 200 W RMS
Output power in 2 ohm	4 x 100 W RMS
Output power in 4 ohm	4 x 60 W RMS
Mono sub channel output in 1 ohm	600 W RMS
Mono sub channel 2 ohm	440 W RMS
Mono sub channel 4 ohm	300 W RMS
Frequency range	10 Hz - 50 kHz
Damping factor	> 200
S/N ratio, A-weighted	> 100 dB
Low level output	No
Input impedance, high level	N/A
High level input with auto start	No
Input sensitivity	0,3 - 7 V
Input impedance	> 10 kohm
Filters channel A & B	HP: 80 - 400 Hz / 1,6 - 8 kHz (x20)
Filters channel C & D	HP: 80 - 400 Hz. LP: 0,3 - 4 kHz / 3 - 40 kHz (x10)
Filter sub channel	LP: 50 - 125 Hz
Phase control for subwoofers	0-180 degrees cont. variable
External cooling fan terminal	Yes
Remote bass level control	Yes
Remote phase shift control	Yes
Power consumption (idle)	1,1A
Power consumption (max)	120 A
Rec. power cable	Minimum 4AWG / 21 mm2

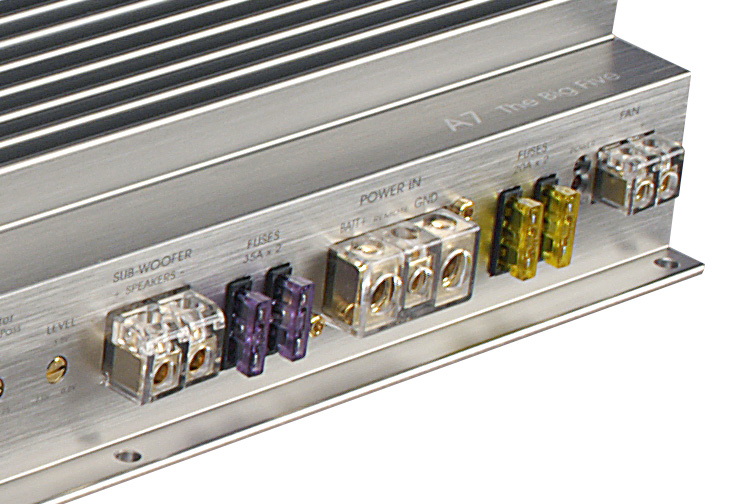

Fuses	2 x 35 A + 2 x 20 A
Dimension (W x D x H)	605 x 240 x 73 mm (23,82 x 9,45 x 2,87 inches)
Weight	8,1 kg ( 17,86 lb)
