HERTZ - HSK165XL

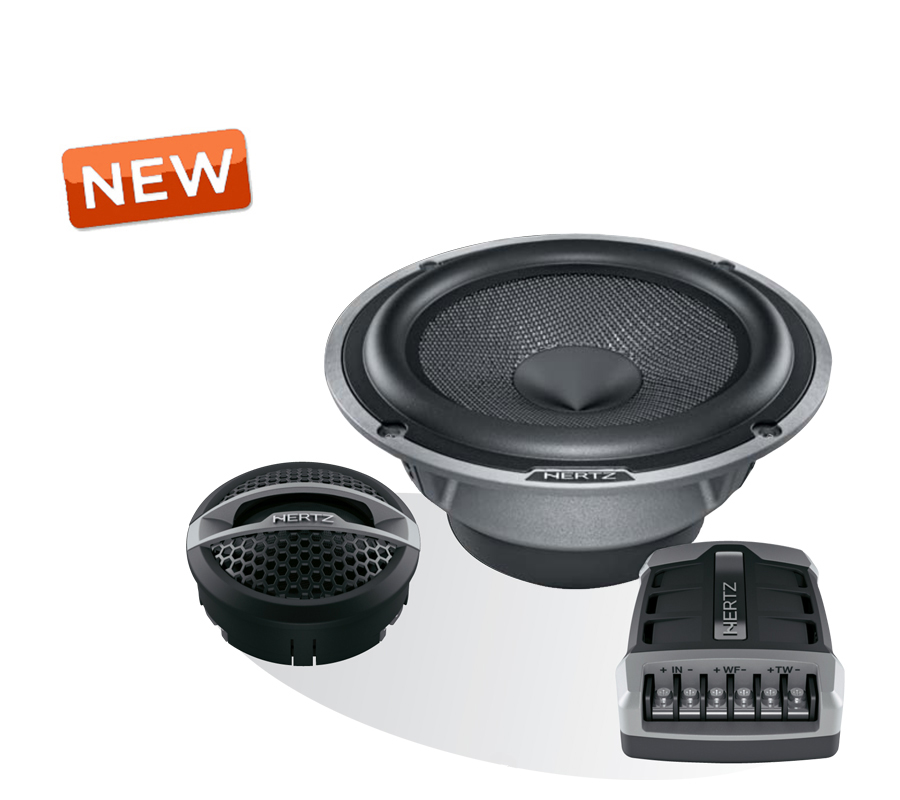

Complete, innovative and versatile, the HSK 165 XL inherits the design and material selection, as well as the evolution in terms of performance proper of the MLK 165; all of this with a 2 dB increase in output throughout its entire frequency range. HSK 165 XL is a two-way system composed of the HT 28 tweeter and the HV 165 XL woofer. The dedicated 2W. XL crossover is made with high-level components, and provides configuration flexibility: you can easily and intuitively adjust the filter according to the installation typology and personal taste. Complete with comprehensive tweeter mounting accessories as well as a grille for the woofer, it can be cosmetically integrated into any vehicle. The HSK 165 XL is a dedicated system for those who look for detailed sound, innovative technology and a refined, hi-tech look.
Tweeter : HT 28 tweeter 28(1”1/8)
1. Tetolon® soft dome tweeter.
2. 28mm ø, ferrofluid-cooled mobile voice coil.
3. High energy Neodymium magnet.
4. Rear acoustic chamber.
5. Revolving support and accessories for factory location and flush mounting.
6. Very flexible, high current input cable.
Woofer : HV 165XL woofer 165 (6”1/2)
1. Soft iron plates for high heat dissipation, part of the symmetrical magnetic flux motor.
2. Over-sized magnet; provides outstanding energy for maximum control.
3. Pure CCWA voice coil wound on a KSV former; for excellent thermal and mechanical capability.
4. Vented bottom plate; improves linearity and thermal dissipation.
5. Damped XL Mesh Fibre Cone; for extended bandwidth and smooth response.
6. V-cone® ; for the best off-axis dispersion and mid-high frequency detail.
7. Anti-vibration rubber magnet cover; damps spurious vibrations.
8. Aerodynamic die-cast aluminium basket; eliminating rear wave reflections.
9. Radial Venting System; for efficient thermal management.
10. Loss-less Polymer Rubber Surround; for long throw and maximum damping.
11. Grille included.
Owners Manual HSK165XL
PDF - 0.36MB
