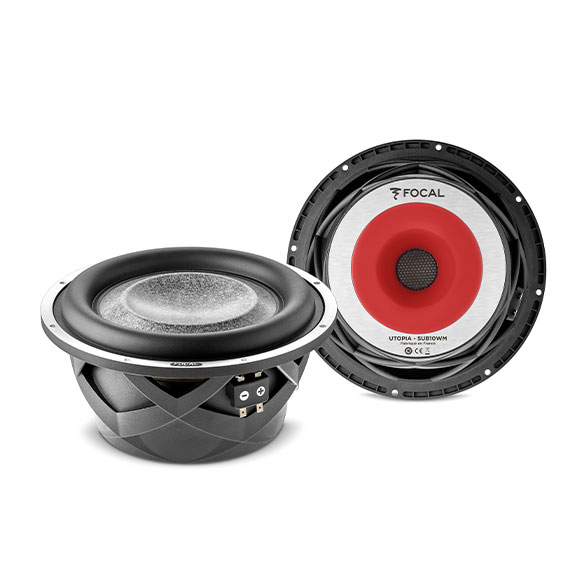

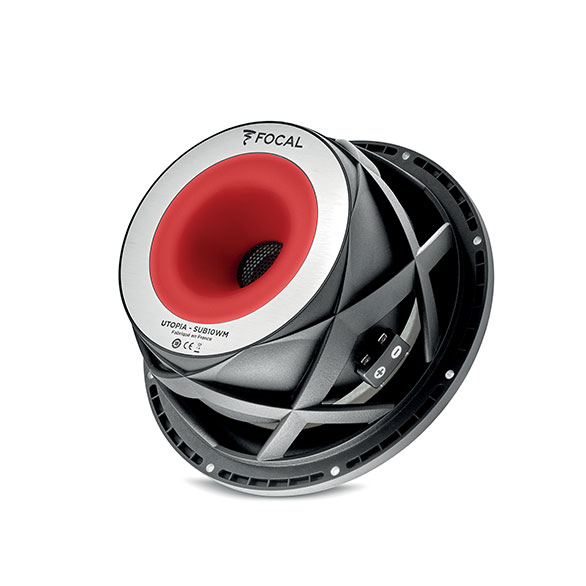

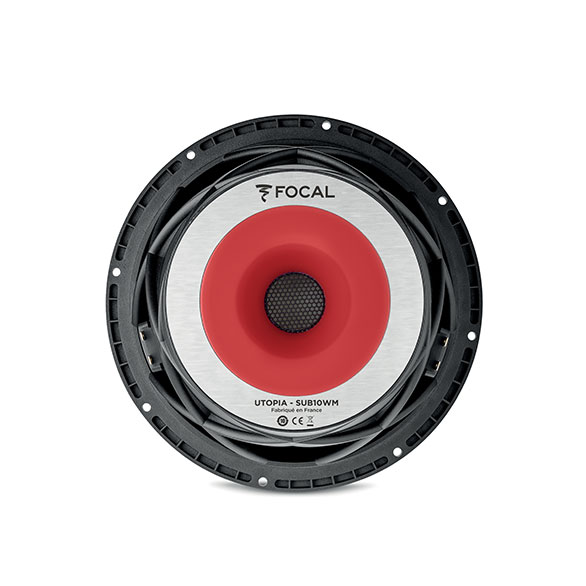

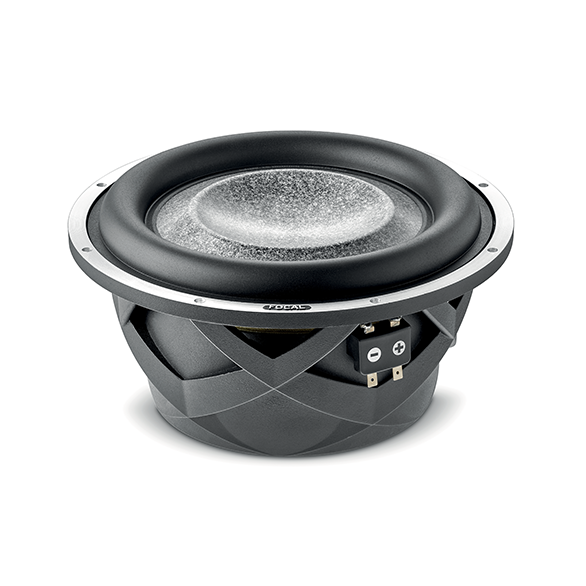

SUBWOOFER
By introducing our ‘M'-profile 'W' cone to a subwoofer for the first time, our engineers were able to develop an unparalleled product, integrating, amongst other things, a 4.7” (120mm) diameter double voice coil and a powerful neodymium motor. These innovations allow it to be integrated into a small sealed enclosure (10L minimum) whilst keeping exceptional dynamics and inimitable audiophile sound.
'M'-profile cone
The new, patented, ‘M'-profile cone is the fruit of many years of research and our expertise in cone materials and geometry. The innovative ‘M’-profile, made from a single piece (with no dust cap), means it is incredibly rigid and perfectly combines the three criteria essential for creating an “ideal” speaker driver: rigidity, lightness and damping. The result is an extremely linear frequency response, a low distortion rate and better sound dispersion.
The many advantages of the ‘M’ profile:
Upon listening, this cone delivers striking realism and level of detail, that transports you into the heart of the music.

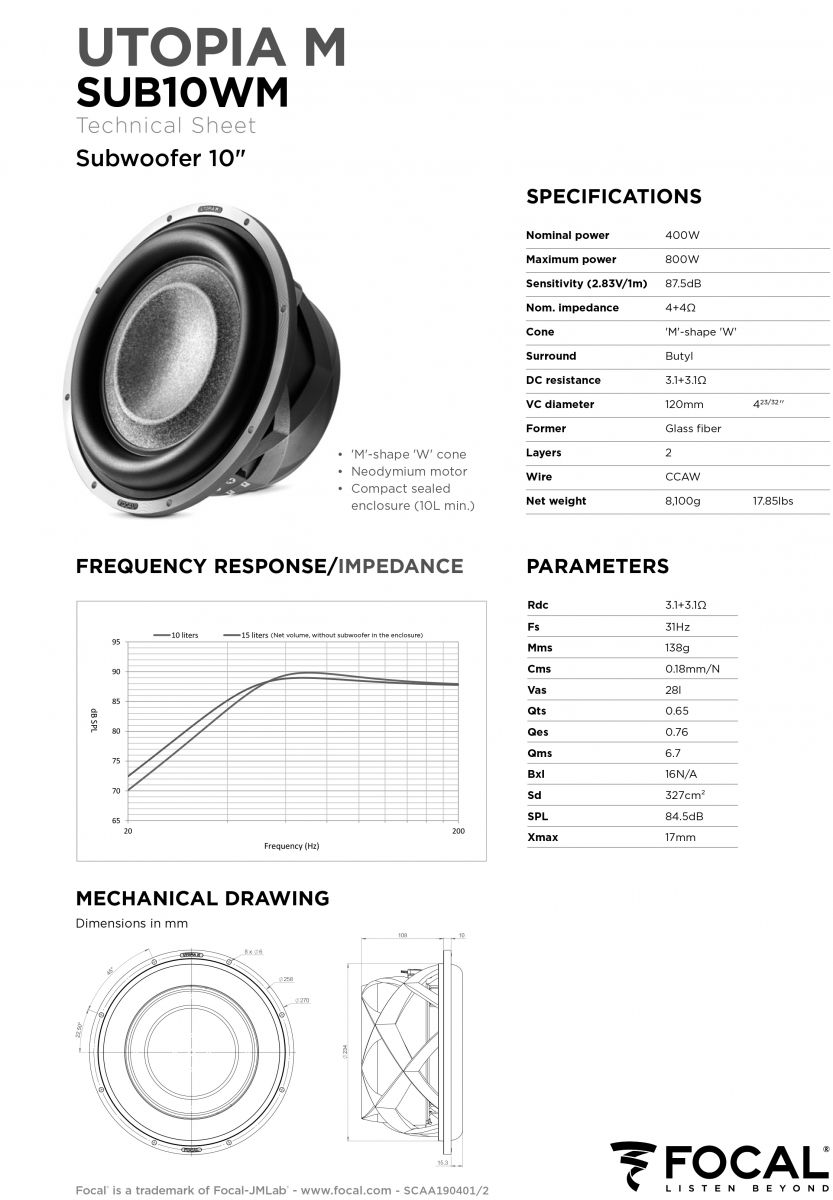

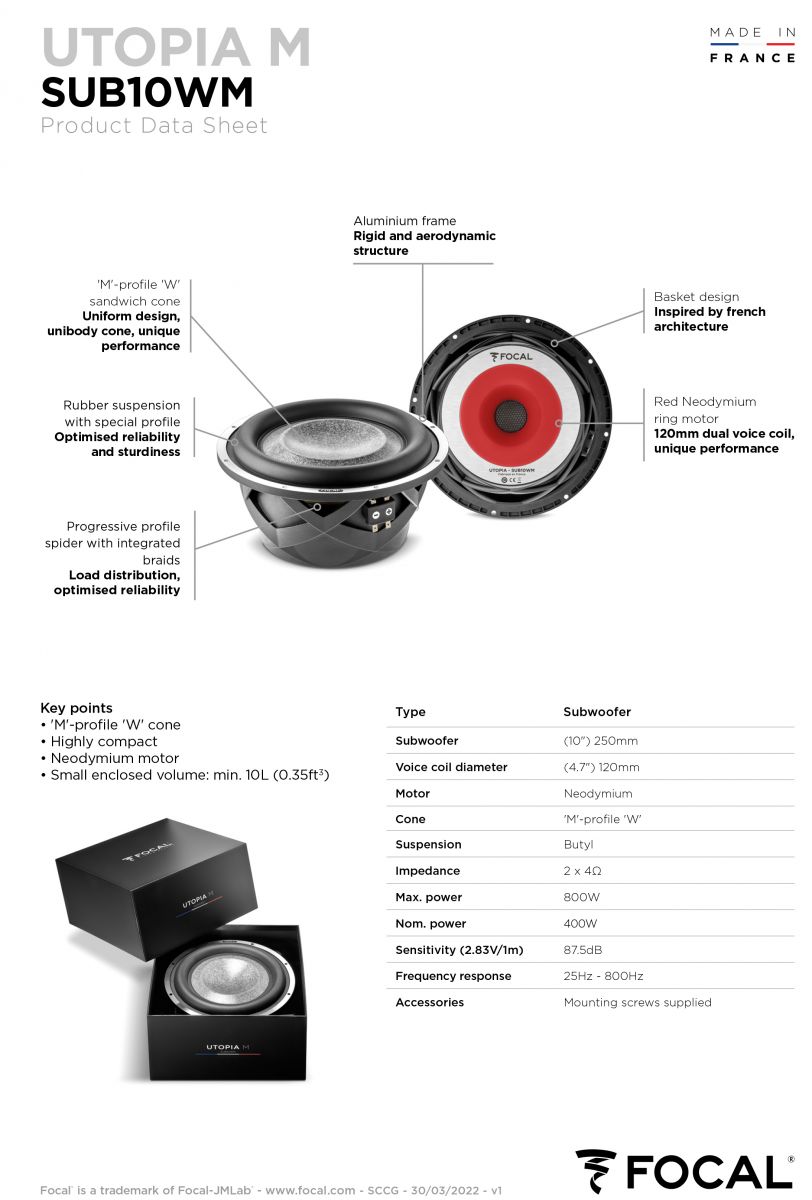

| subwoofer | (10″) 250mm |
|---|---|
| voice coil diameter | (4.7″) 120mm |
| motor | Neodymium |
| cone | ‘M’-profile ‘W’ |
| suspension | Butyl |
| impedance | 2 x 4 Ohm |
| max power | 800W |
| nom power | 400W |
| sensitivity | 87.5dB |
| frequency response | 25Hz – 800Hz |
| accessories | Mounting screws supplied |
