Product Description

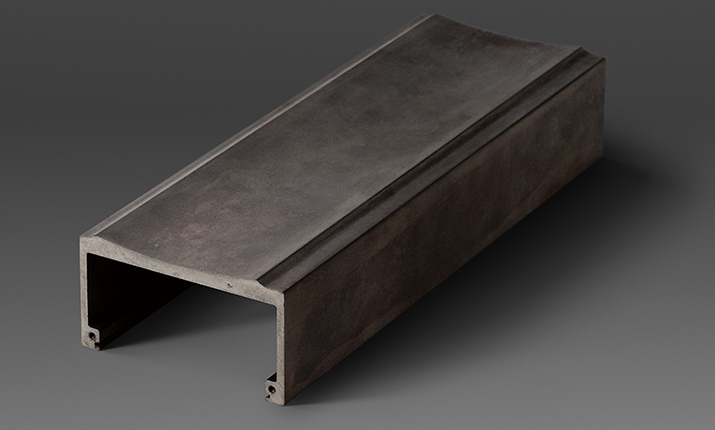

The P-100 is a compact high-performance monaural power amplifier that lets you achieve a system with the principles of “one channel, one amp” and “one speaker, one amp” at a reasonable price. With a discrete amplifier circuit configuration that makes sound quality the top priority in the tradition of the Air Circuit concept, a custom-made power transformer with a combination of a low core loss center and high purity oxygen-free copper windings and other parts carefully selected on the basis of listening tests to carry on from the previous models, and like our flagship P-1 model, housed in a body constructed of audio equipment-specific MAGNEOLA magnesium alloy, the P-100 takes both lightweight construction and superior sound quality even further. From passive 2-way to full multi channel, it lets everyone experience the monaural amplifier’s unique "infinite channel separation" sound field with cost performance and ease of use flexible to systems of all scales.

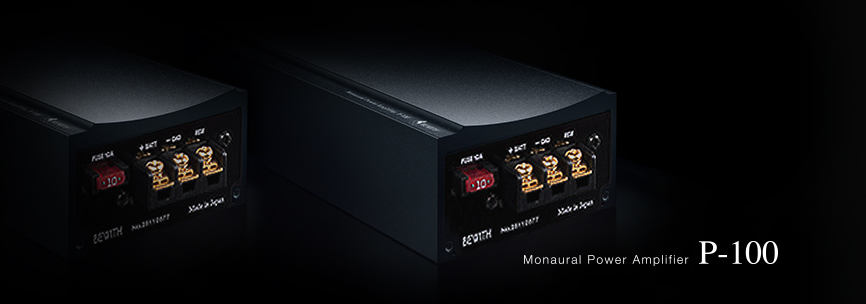

75W Monaural Power Amplifier
P-100

Power Source | 14.4V DC (11.0 – 15.0V allowable) |
---|---|
Continuous Power Output | 75W x 1ch (14.4V : 4Ω : 20 – 20kHz : 0.03%THD) |
Frequency Response | 10 – 40,000Hz (-1dB) |
Signal to Noise Ratio | 98dB |
Load Impedance | 4Ω |
Damping Factor | 450 (4Ω:100Hz) |
Input Level | 0.2 – 6.0V |
Fuse | 10A x 1 |
Size | W208 x D80 x H43 mm |
Weight | 496g |
